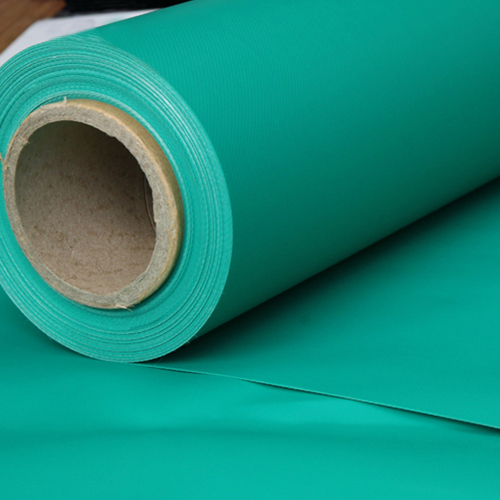

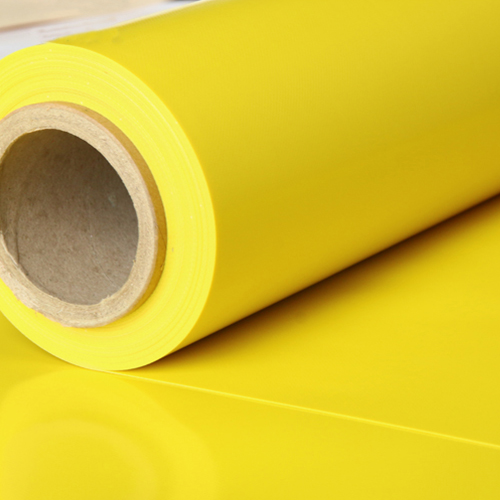

PVC parking shade fabric is widely used in a variety of settings. In residential areas, it is commonly employed to create carports or makeshift parking shades, providing homeowners with an affordable and effective way to protect their vehicles from the elements, PVC parking shade fabric can last for 10 - 15 years, making it a cost - effective and reliable solution for vehicle protection.
The most popular specs are 900gsm and 1100gsm.
Product Character:
1.Much Higher Tension, tear strength and adhesion strength.
2.One or two sides acrylic lacquering.
3.Good peeling strength for hot-air and high-frequence welding.
4.Mildew proof and anti-uv
5.Sun-proof index 5,color fastness more than 5
6.Flame with NFPA701,B1,B2,M1.M2
7.Max seamless width up to 3.30m
8.we can make any colors according to RAL,PANTON
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn(Panama) | warp: | dtex | 1000 |
| weft: | dtex | 1000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 30 |
| weft: | threads/inch | 30 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 265 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 900 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 4000 |
| weft: | N/5cm | 3850 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 450 |
| weft: | N | 400 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 180 | |
| 11 | Adhesion (Welding) | kg/5cm | 15 | |
| 12 | FR | B2/B1/M2/M1/NFPA701 | ||
| 13 | UV Stability | yes | ||
| 14 | Surface treatment | Acrylic/PVDF | ||
