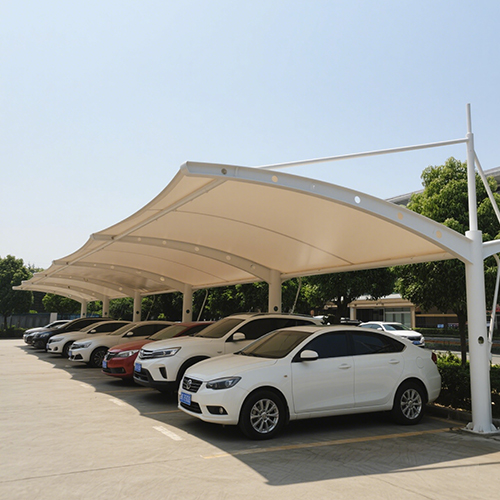

Sunshade is a device or structure designed primarily to block or filter sunlight, providing a shaded area that offers protection from the sun's intense rays. These versatile items are crafted from various materials, such as fabrics like polyester or nylon, which are often treated to enhance their sun - blocking capabilities, including UV resistance. Some sunshades incorporate metal or plastic frames to maintain their shape and stability. The most popular spec for sunshade is 900gsm and 750gsm.
Product Character:
1.Much Higher Tension, tear strength and adhesion strength.
2.One or two sides acrylic lacquering.
3.Good peeling strength for hot-air and high-frequence welding.
4.Mildew proof and anti-uv
5.Sun-proof index 5,color fastness more than 5
6.Flame with NFPA701,B1,B2,M1.M2
7.Max seamless width up to 3.30m
8.we can make any colors according to RAL,PANTON
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn(Panama) | warp: | dtex | 2000 |
| weft: | dtex | 2000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 12 |
| weft: | threads/inch | 12 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 263 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 900 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 4000 |
| weft: | N/5cm | 3800 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 450 |
| weft: | N | 400 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 180 | |
| 11 | Adhesion (Welding) | kg/5cm | 15 | |
| 12 | FR | B2/B1/M2/M1/NFPA701 | ||
| 13 | UV Stability | yes | ||
| 14 | Surface treatment | Acrylic/PVDF | ||
