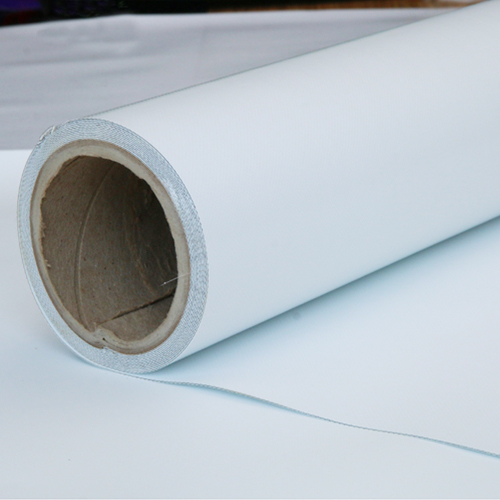

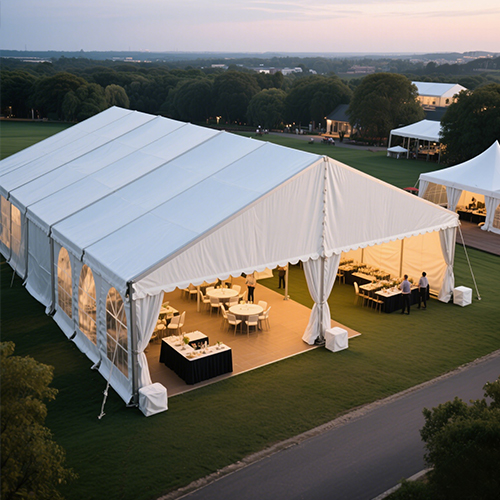

Blockout vinyl PVC is general used to all kinds of tent,it includes laminated PVC and coated PVC,laminated PVC is used in American market and coated PVC is used for big marquee tent.
Product Character:
1.Much Higher Tension, tear strength and adhesion strength.
2. Two sides acrylic or PVDF lacquering.
3.Good peeling strength for hot-air and high-frequence welding and blockout effect.
4.Hot and cold of whether resistance
5.Mildew proof and anti-uv
6.Waterproof,anti-leak,and anti cold
7.Sun-proof index 5,color fastness more than 5
8.Flame with NFPA701,B1,B2,M1.M2,DIN75200
9.It can reach to EN71-3 and REACH stand.
10.Max seamless width up to 5.10m(201'')
11.we can make any color according to RAL,PANTON
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn | warp: | dtex | 1000 |
| weft: | dtex | 1000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 3 |
| weft: | threads/inch | 3 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 30 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 340 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 600 |
| weft: | N/5cm | 500 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 120 |
| weft: | N | 100 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 60 | |
| 11 | Adhesion (Welding) | kg/5cm | 5 | |
